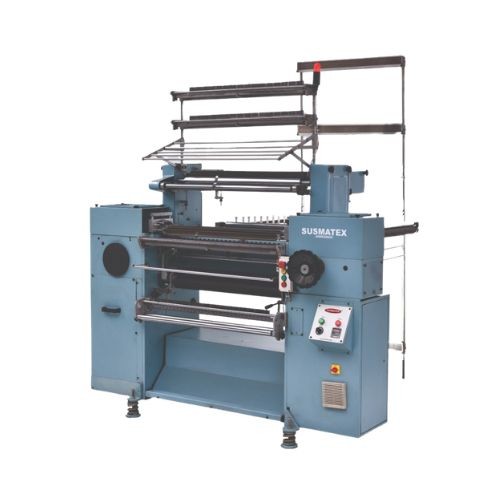

Crochet Warp Knitting Machine (SMC-800)
The SMC-800 Crochet Warp Knitting Machine is designed for the efficient production of elastic and rigid laces, tapes, bands, and other narrow fabrics. Available in SMC-3/800 and SMC-8/800 models, it offers high-speed performance, precise pattern control, stable yarn feeding, and easy operation. Its robust construction and automatic stop-motion system ensure reliable production with minimal downtime.
Key Features
• High-speed and low-noise operation
• Suitable for elastic and rigid lace production
• Available in SMC-3/800 and SMC-8/800 models
• Precision-controlled weft bar system
• Stable rubber thread feeding mechanism
• Automatic stop-motion for yarn breakage detection
• Protection against fabric entanglement
• Inching/Jogging switch for easy setup
• User-friendly operation and maintenance
• Durable construction for long service life
Specification | SMC-3/800 | SMC-8/800 |
No. of Weft Bars | Max. 3 | Max. 8 |
Repeats | — | 1:12, 24, 60 |
Working Width | Max. 780 mm | Max. 780 mm |
Weft Insertion per cm | 2–20 (5–50 Per Inch) | 2–20 (5–50 Per Inch) |
Gauge | 15 | 15 |
Delivery | Back Side Free Fall in Box | Back Side Free Fall in Box |
Rubber Feeder | Installed | Installed |
Design Change | By Chain Link | By Chain Link |
Stop Motion | Dropper System | Dropper System |
Speed | 800–1100 RPM | 800–1100 RPM |
Motor | 1.2 kW, 1400 RPM, A.C. Motor | 1.2 kW, 1400 RPM, A.C. Motor |
Machine Size (L × W × H) | 890 × 1600 × 2000 mm | 890 × 1900 × 2000 mm |
Weight (Without Yarn) | Without Chain Drum: 900 kg (Approx.) | Without Chain Drum: 900 kg (Approx.) |
×
