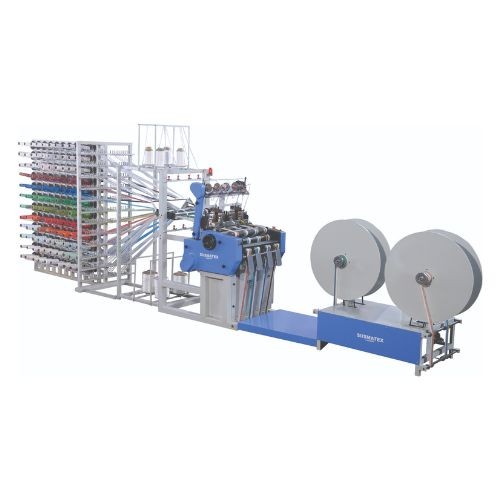

SJN 4/75
The SJN 4/75 High Speed Needle Loom offers the perfect balance of speed and versatility for medium-width tape and webbing production. It delivers consistent fabric quality while ensuring efficient operation and reduced downtime.
Key Features
• Suitable for medium-width narrow fabrics
• Consistent weaving performance
• Automatic stop motion system
• Adjustable operating speed
• Positive weft feeding mechanism
• Durable cam and shedding system
• Easy weaving setup
• Reliable continuous production
Model No. | SJN 4-75 |
Max. Width | 75 mm |
Thickness | 0.3-5 |
R.P.M. | 600- 800 |
Break | Attached |
Heald Frame | 04-Oct |
Drive Motor | 1.5 HP Three Phase |
Chain Repeat | Aug-48 |
Cam | Chain Link / Fix Cams |
Weft & Warp | Automatic |
Lubrication | Automatic |
Catch Thread | Attached |
Weft Supply | Attached |
Weight | 550 kgs. |
Creel Stand for Jumbo Bags | 1200 Nos. Bobbin |
×
