SJN 2/175

SJN 2/175

SJN 2/175

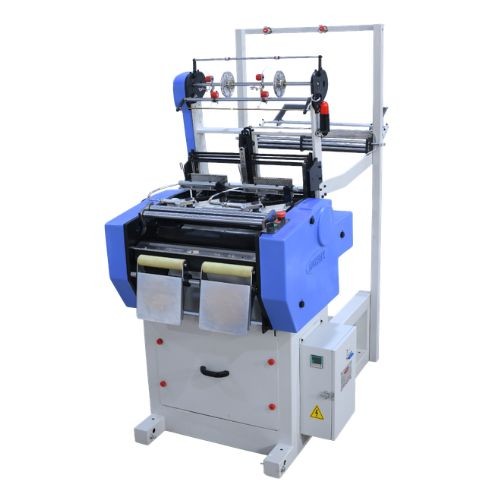

The SJN 2/175 High Speed Needle Loom is specially developed for manufacturing extra-wide webbings, lifting belts, and heavy-duty industrial tapes. Its robust design and high-strength weaving capability make it ideal for technical textile applications.

Key Features
• Extra-wide weaving capacity up to 175 mm
• Ideal for heavy-duty webbings
• Strong and durable machine frame
• Automatic stop motion with fault indication
• Positive yarn feeding system
• Consistent weaving quality
• Low maintenance operation
• Reliable performance for industrial production

Model No.

SJN 2/175

Max. Width

175 mm

Thickness

0.3-5

R.P.M.

300-400

Break

Attached

Heald Frame

04-Oct

Drive Motor

1.5 HP    Three Phase

Chain Repeat

Aug-48

Cam

Chain Link / Fix Cams

Weft & Warp

Automatic

Lubrication

Automatic

Catch Thread

Attached

Weft Supply

Attached

Weight

550 kgs.

Creel Stand for Jumbo Bags

1200 Nos. Bobbin

×
