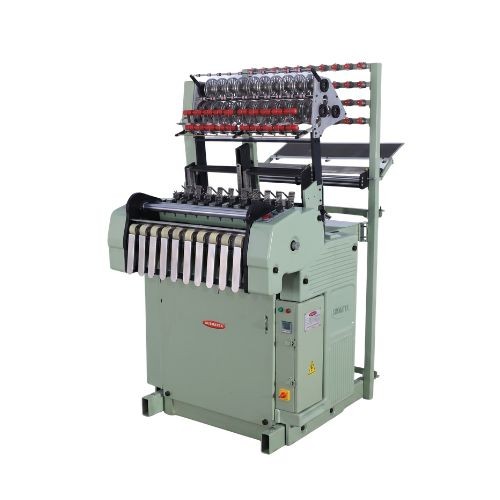

SMT 10/30
The SMT 10/30 High Speed Needle Loom is designed for high-output production of narrow tapes and lightweight webbings. Its 10-head configuration maximizes productivity while maintaining excellent weaving accuracy and fabric consistency.
Key Features
• 10-head high-production design
• Ideal for narrow-width tapes
• Stable high-speed weaving performance
• Automatic yarn break detection
• Positive weft feeding system
• Smooth and efficient operation
• Easy weaving adjustments
• Low maintenance requirements
MODEL | TAPE LINES | REED WIDTH | HEALD FRAME | PICK PEPEAT | MAX. POWER | R.P.M | WEFT DENSITY |
SMT 2/65 | 2 | 65mm | 16 | 48 | 1.1KW | 900 | 3.5-36.7cm |
SMT 2/80 | 2 | 80mm | 16 | 48 | 1.1KW | 900 | 3.5-36.7cm |
SMT 2/110 | 2 | 110mm | 12 | 48 | 1.1KW | 900 | 3.5-36.7cm |
SMT 2/130 | 2 | 130mm | 12 | 48 | 1.1KW | 800 | 3.5-36.7cm |
SMT 4/55 | 4 | 55mm | 16 | 48 | 1.1KW | 900 | 3.5-36.7cm |
SMT 4/65 | 4 | 65mm | 16 | 48 | 1.1KW | 900 | 3.5-36.7cm |
SMT 6/45 | 6 | 45mm | 16 | 48 | 1.1KW | 1000 | 3.5-36.7cm |
SMT 8/30 | 8 | 30mm | 16 | 48 | 1.1KW | 1000 | 3.5-36.7cm |
SMT 4/80 | 4 | 80mm | 16 | 48 | 1.5KW | 900 | 3.5-36.7cm |
SMT 6/55 | 6 | 55mm | 16 | 48 | 1.5KW | 1000 | 3.5-36.7cm |
SMT 8/45 | 8 | 45mm | 16 | 48 | 1.5KW | 1000 | 3.5-36.7cm |
SMT 10/30 | 10 | 30mm | 16 | 48 | 1.5KW | 1000 | 3.5-3.67cm |
SMT 12/20 | 12 | 20mm | 16 | 48 | 1.5KW | 1100 | 3.5-3.67cm |
SMT 4/110 | 4 | 110mm | 12 | 48 | 1.5KW | 700 | 3.5-36.7cm |
SMT 4/130 | 4 | 130mm | 12 | 48 | 1.5KW | 700 | 3.5-36.7cm |
SMT 6/80 | 6 | 80mm | 16 | 48 | 1.5KW | 700 | 3.5-36.7cm |
SMT 6/65 | 6 | 65mm | 16 | 48 | 1.5KW | 700 | 3.5-36.7cm |
SMT 8/55 | 8 | 55mm | 16 | 48 | 1.5KW | 700 | 3.5-36.7cm |
SMT 10/45 | 10 | 45mm | 16 | 48 | 1.5KW | 800 | 3.5-36.7cm |
SMT 12/30 | 12 | 30mm | 16 | 48 | 1.5KW | 800 | 3.5-36.7cm |
×
