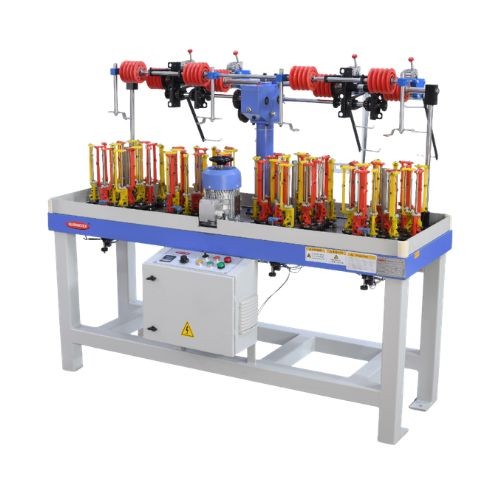

SHB 16-4-90
The SHB 16-4-90 High Speed Braiding Machine combines compact design with four-head productivity, making it ideal for manufacturers producing multiple braided products simultaneously. It ensures high efficiency, precision braiding, and stable operation.
Key Features
• Four-head production configuration
• Compact and space-saving design
• High-speed braiding up to 330 RPM
• Suitable for ropes, laces, and cords
• Uniform braid structure and finish
• Easy operation and maintenance
• Reliable performance for continuous production
• Optimized for medium-scale manufacturing
Sr. No. | Model | Spindle | Heads | Horn Gear Size (mm) | Braiding type | Bobbin size(mm) | Speed |
1 | SHB 12-4-90 | 12 | 4 | 90 | Round | Φ48*140 | 330 |
2 | SHB 16-2-90 | 16 | 2 | 90 | Round | Φ48*140 | 330 |
3 | SHB 16-4-90 | 16 | 4 | 90 | Round | Φ48*140 | 330 |
4 | SHB 24-2-90 | 24 | 2 | 90 | Round | Φ48*140 | 330 |
5 | SHB 32-2-90 | 32 | 2 | 90 | Round | Φ48*140 | 330 |
6 | SHB 48-2-90 | 48 | 2 | 90 | Round | Φ48*140 | 330 |
7 | SHB 17-4-90 | 17 | 4 | 90 | Flat | Φ48*140 | 330 |
8 | SHB 21-4-90 | 21 | 4 | 90 | Flat | Φ48*140 | 330 |
9 | SHB 25-2-90 | 25 | 2 | 90 | Flat | Φ48*140 | 330 |
10 | SHB 33-2-90 | 33 | 2 | 90 | Flat | Φ48*140 | 330 |
×
